Fluter

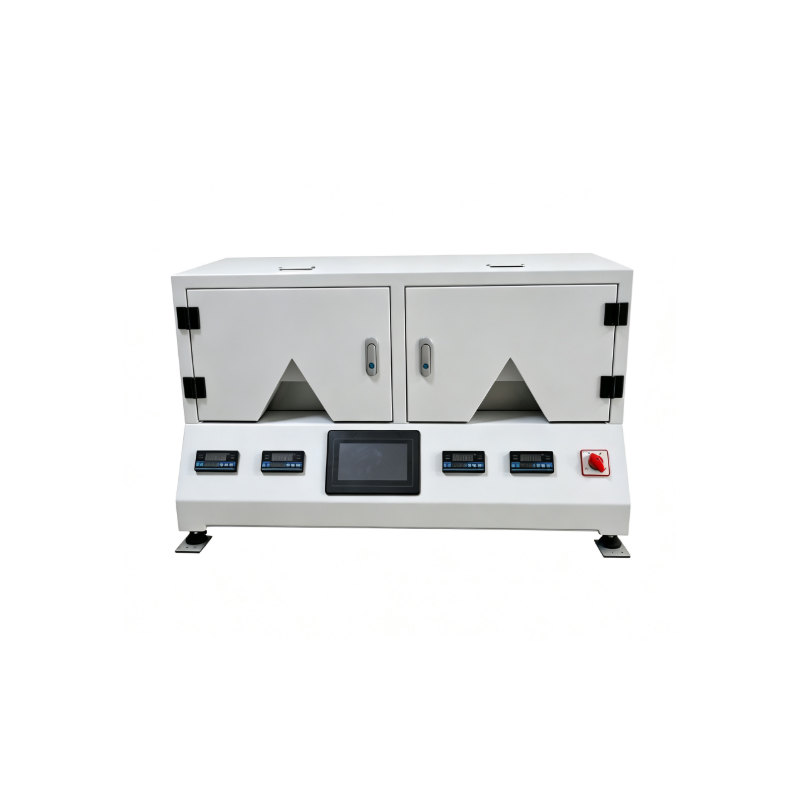

The Fluter is a precision laboratory device specifically designed for producing standard A-flute corrugated waveforms from corrugating medium. After fluting, the specimens can be tested with a compression tester to determine CMT (Concora Medium Test) and CCT (Corrugated Crush Test) values. The instrument complies with QB 1061, GB/T 2679.6, and ISO 7263 standards. The working speed is 4.5 r/min, adjustable. The gear profile is Type A, with an upper tooth radius of 1.50±0.1 mm, lower tooth radius of 2.00±0.1 mm, and tooth depth of 4.75±0.05 mm. The working temperature is adjustable from 0 to 200...

Inquiry

E-mail：anmt_test@126.com

WhatsApp：+86 133 5666 3110

Detailed Description
Product Encyclopedia

Product Introduction
The fluter operates on a precision gear hot-press forming principle. Corrugating medium is pressed into a standard A-flute waveform using heated precision Type A gears. The instrument uses single-chip microcomputer control technology with a high-precision PID temperature control system that precisely controls heating temperature (standard 175±8°C), featuring automatic temperature compensation and over-temperature protection. The precision gear transmission mechanism is motor-driven, with an adjustable working speed of 4.5 r/min. The spring tension of 100 N combined with adjustable working pressure (49-108 N) ensures consistent flute formation. The fluted specimens can then be tested with a compression tester for CMT and CCT determination to evaluate the fluting performance and compressive strength of corrugating medium.

Key Features
Standard Type A Gear Precision Fluting Gear profile is Type A, with upper tooth radius 1.50±0.1 mm, lower tooth radius 2.00±0.1 mm, and tooth depth 4.75±0.05 mm, strictly complying with standard specifications.
PID High-Precision Temperature Control PID control with automatic temperature compensation mode offers fast response speed and high steady-state accuracy; standard heating temperature 175±8°C with 1°C temperature resolution.
Touchscreen Intelligent Control Touchscreen interface with digital display of actual and set temperatures; parameters are automatically memorized after power-off; features auto-tuning function.
Wide Adjustable Working Pressure Range Working pressure adjustable from 49 to 108 N with spring tension of 100 N, adapting to different types of corrugating medium.
Precision Gear Transmission Mechanism Automated fluting method with adjustable working speed of 4.5 r/min; smooth operation with consistent flute formation.
Over-Temperature Protection, Safe and Reliable Over-temperature protection device ensures operation within safe temperature limits, extending equipment service life.
Complete Standard Accessories Includes a set of combs as standard, meeting routine replacement and maintenance needs.
Multi-Standard Compliance Complies with QB 1061, GB/T 2679.6, and ISO 7263 standards, delivering standardized and comparable test data.

Main Technical Specifications

Parameter	Specification
Working Speed	4.5 r/min (adjustable)
Upper Tooth Radius	1.50 ± 0.1 mm
Lower Tooth Radius	2.00 ± 0.1 mm
Tooth Depth	4.75 ± 0.05 mm
Gear Profile	Type A
Temperature Resolution	1°C
Control Method	Touchscreen
Temperature Adjustable Range	0 – 200°C
Standard Heating Temperature	175 ± 8°C
Working Pressure Adjustable Range	49 – 108 N
Spring Tension	100 N
Temperature Control	PID control with auto temperature compensation
Overall Dimensions (L×W×H)	Approx. 564 × 377 × 330 mm
Power Supply	AC 220V, 50Hz
Accessories	Comb set (1 set)
Applicable Standards	QB 1061, GB/T 2679.6, ISO 7263

FAQ
1. What is the function of the Fluter?
The Fluter is used to press corrugating medium into standard A-flute waveforms under laboratory conditions. The fluted specimens can then be tested with a compression tester to determine CMT (Concora Medium Test) and CCT (Corrugated Crush Test), evaluating the fluting performance and compressive quality of corrugating medium.
2. Why is the standard heating temperature 175±8°C?
175°C is the standard setting that simulates the actual production temperature of corrugated board production lines. At this temperature, the corrugating medium fully softens and forms, while ensuring flute consistency and comparability. ±8°C is the permissible temperature fluctuation range.
3. How is the working pressure adjusted?
The working pressure is adjustable from 49 to 108 N based on the type and grammage of the corrugating medium. Combined with the 100 N spring tension, the appropriate fluting pressure is set via the pressure adjustment device to ensure full and consistent flute formation.

4. What are the advantages of PID temperature control?
PID control offers fast response speed and high steady-state accuracy. The automatic temperature compensation mode eliminates the influence of ambient temperature changes on temperature control precision, ensuring consistent heating conditions for each fluting operation and improving test result reproducibility.
5. How are comb accessories replaced and maintained?
Combs are consumable accessories that may wear after extended use. The standard configuration includes one comb set. Replacement involves removing the old comb and installing the new one following the steps in the instruction manual. Original spare combs are always available from our company.
6. How are CMT and CCT tested after fluting?
The fluted corrugating medium specimens must be tested with a compression tester. For CMT, the specimen is placed flat for compression; for CCT, the specimen is placed upright for compression. Refer to GB/T 2679.6 and ISO 7263 standards for specific operating methods.

After-Sales Service
Established in 2007 and with nearly two decades of experience, Shandong Annimet Instrument Co., Ltd. is a professional manufacturer integrating R&D, production, and sales of laboratory testing and sample preparation equipment. Quality is our foundation. We are your bridge from concept to reality. We deliver more than just instruments — we deliver confidence. This Fluter comes with a 12-month warranty and lifetime technical support. Our professional team offers 24/7 service response, free installation guidance, operation training, and corrugating medium fluting test method consultation. For any inquiries, please contact our customer service team; we are dedicated to providing comprehensive pre-sales, in-sales, and after-sales support. Hotline: 400-9933-057, Email: anmt_test@126.com.

The fluting performance of corrugating medium is one of the key factors determining the quality of corrugated board and the compressive strength of boxes. In corrugated board production lines, the corrugating medium is heated, moistened, and mechanically formed into a fluted waveform before being bonded to linerboard to produce corrugated board. The laboratory fluter is a specialized device that simulates this process, using precision Type A gears under standard temperature and pressure to press corrugating medium into standard fluted waveforms, providing standardized specimens for evaluating the fluting quality and compressive performance of corrugating medium. After fluting, the CMT (Concora Medium Test) and CCT (Corrugated Crush Test) values determined with a compression tester are two core indicators for corrugating medium classification and selection. CMT reflects the crush resistance of the formed corrugating medium, while CCT reflects its strength under edgewise compression. These two indicators directly relate to the Edge Crush Test (ECT) of corrugated board and the Box Compression Test (BCT) of boxes, serving as important references for corrugating medium quality control and box design material selection.
